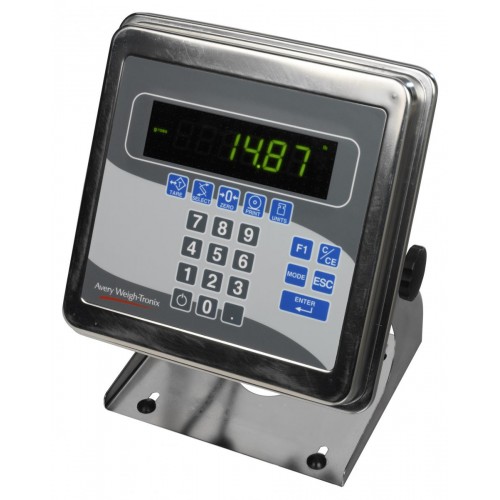

INDICATOR AVERY E1070

Features

Stainless steel high connectivity indicator designed to connect to industrial networks for process integration and weight transmission
Wide range of Serial, Ethernet TCP/IP and standard FieldBus interfaces allows simple, low cost connection to operating networks and peripheral devices
Weighing, counting, checkweighing, recipe/filling (10 recipes/8 steps), totalising, peak hold, remote display as standard
Numeric keypad with single function key for rapid data entry and control
3 inputs and outputs for direct process control
Specifications

Ethernet TCP/IP, DeviceNet, ModBus TCP, ProfiBus DP, Ethernet IP as standard, with optional ControlNet
2 serial interfaces, selectable for RS232, RS485, RS422 or 20mA Current Loop,
Connects to a wide range of analogue load cells – maximum 8 load cells
20mm high LED display, with graphical checkweighing indication
IP67-rated stainless steel water and dust resistant case, suitable for desk, wall or optional pole mounting
Approvals

Trade approved (NMI S462 10,000 Divisions)
