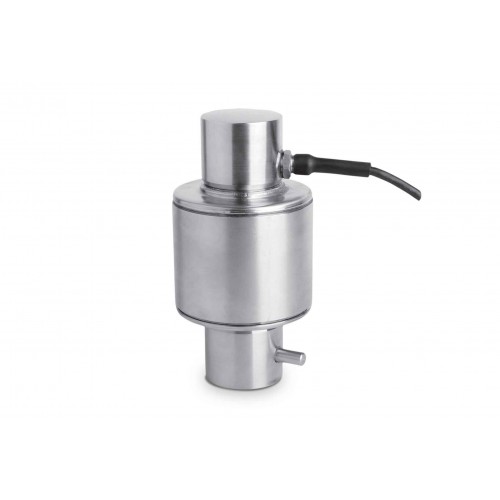

LOADCELL RICE LAKE RL74

RL74 Compression Canister Load Cell Specifications
Full Scale Output:
2,0 mV/V

Output Resistance:
705 ohms, ± 5

Input Resistance:
800 ohms, ± 5

Material Finish:
Stainless steel

Temperature:
-10° C to 40° C

Seal Type:
Hermetically sealed, IP68/IP69K

Safe Overload:
150%

Rated Excitation:
10 V

Combined Error:
< ± 0,013% Insulation Resistance: > 5.000 megohms

Cable Length:
18 m

Cable Construction:
PVC

Cable Color Code:
Green ………………….+ Excitation
Black …………………..– Excitation
Red ………………….+ Signal
White ………………….– Signal
Blue ………………….+ Sense
Yellow ………………….– Sense

Warranty:
One-year limited warranty

Approvals:
OIML
Ex – available on request
