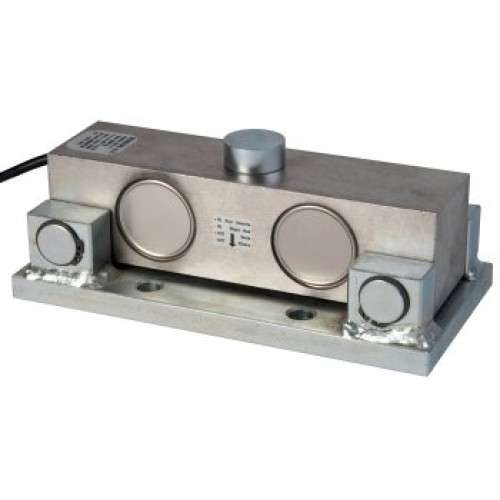

LOADCELL SENSOCAR DCO-4

Capacity 20 – 25 – 30 – 40 – 50 t

3000 divisions OIML-R60
Measuring element from steel alloy
Fully stainless steel
Protected against humidity IP-67
With gas dischargers to protect against atmospheric discharges
Avalable in ATEX version (optional)
[II 1GD Ex ia IIC T4…T6 Ga] [II 1GD Ex ia IIIC T135ºC Da]

Technical data

Accuracy class C3-C4
Rated output 2 ± 0.1% mV/V
Vmin Emax/10000
Excitation Voltage 5÷15V
Input Resistance 700 ± 3?
Output Resistance 700 ± 3?
Temperature Compensation -10ºC/+40ºC
Temperature limits -30ºC/ +70ºC
Insulation resistance > 5000 M?
